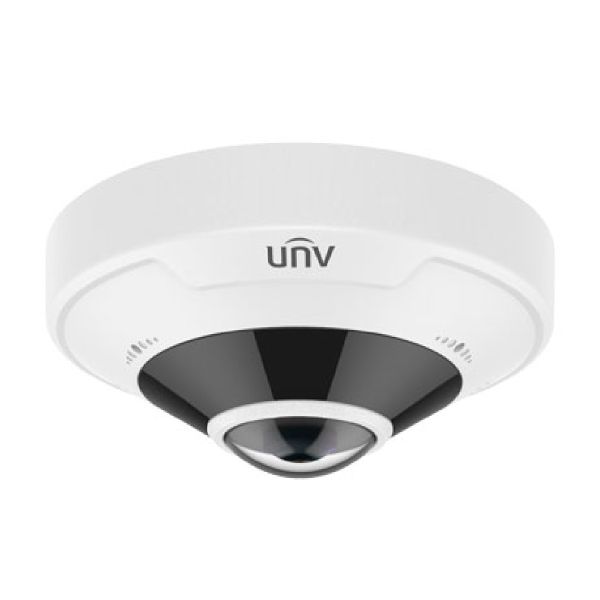

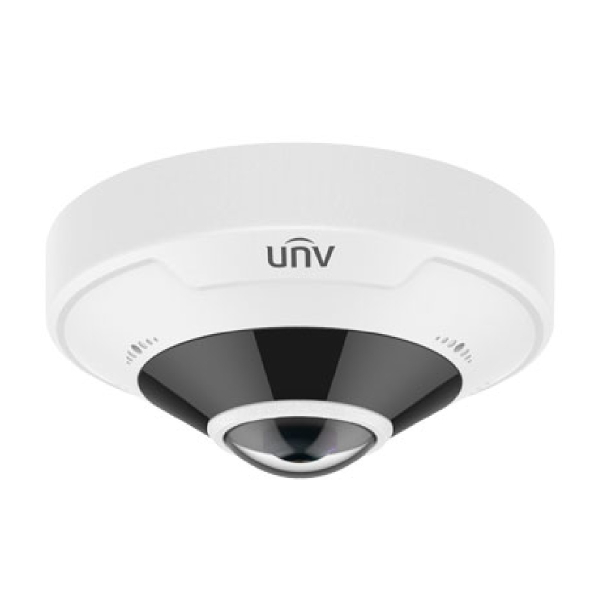

UNV 4K Ultra HD Vandal-resistant Fisheye Fixed Dome Camera
OMR 213.330
Price inclusive of VAT
- Ultra wide-angle lens, 360° panoramic image
- Embedded infrared light, 360° fill-in light, up to 10m (33ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Max 4000*3000 resolution
- Ultra265, H.265, H.264, MJPEG
- Built-in microphone & speaker, two-way talk supported
- ROI(Region of Interest)
- Distortion correction supported
Availability: In stock
SKU
IPC868ER-VF18-B
| Image sensor | 1/1.7", 12.0 megapixel, progressive scan, CMOS |
| Lens | [email protected] |
| Lens (mm) | 1.8 |
| Detect (m) | 43.8 |
| Observe (m) | 17.5 |
| Recognize (m) | 8.8 |
| Identify (m) | 4.4 |
| Angle of View | 360° |
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.05Lux (F2.4, AGC ON), 0Lux with IR |
| Day / Night | IR-cut filter for day & night function |
| S/N Ratio | >52dB |
| IR Range | Up to 10m (33ft) |
| wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | DWDR |
| Compression | Ultra265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Panorama | 25fps (3000*2000); 15fps (4000*3000, 3000*2000, 3000*1500) |
| Frame Rate PTZ | 15fps (1920*1080) |
| Video Bit Rate | 128 Kbps~16 Mbps |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/ Flip Horizontal/180° |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation, EZView, EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Mount Type | Support table, wall, and ceiling |
| Display Mode | Support 10 display modes in total (including display modes of mount types and decoding modes): |
| Display Mode | Original Image, Fisheye+4PTZ, Panoramic |
| Preview Mode | Original Image, 360° Panoramic+1PTZ, 180° Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360° Panoramic+6PTZ, Fisheye+8PTZ |
| Audio interface Input | impedance 35kΩ; amplitude 2V [p-p] |
| Audio interface Output | impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 2/1, Multiple Alarm linkage editable |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| Serial | 1 channel RS485 interface |
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet |
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| Certifications | CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max 11.7W |
| Dimensions (Ø x H) | Φ149 x 55mm (Φ5.87” x 2.17”) |
| Net Weight | 0.5kg (1.1lb) |
| Material | Metal + Plastic |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH |
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH |
| surge protection | 6kv |
| Ingress Protection | IP66 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
