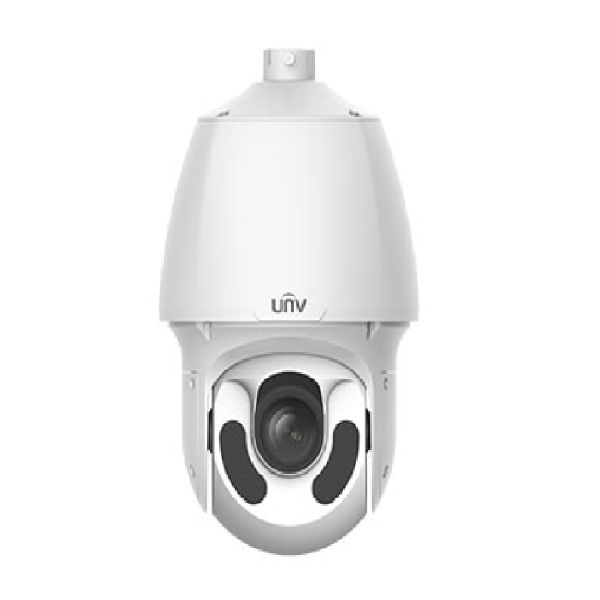

UNV 2MP 33x Lighthunter Network PTZ Dome Camera
OMR 249.330
Price inclusive of VAT
- High-quality image with 2MP,1/2.8’’ CMOS sensor
- 1920*1080@60fps in the mainstream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 33X Optical Zoom
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 150m (492 ft) IR distance
- AC 24V±25%, DC 24V±25% or PoE power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP66 ingress protection
Availability: In stock
SKU
IPC6622SR-X33-VF
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
| Digital Zoom | 16 |
| Optical Zoom | 33 |
| Iris | Auto; F1.5 ~ F4.0 |
| Angle of View (H) | 56.2° ~ 2.6° |
| Angle of View (V) | 33.5° ~ 1.4° |
| Angle of View (O) | 69.1° ~ 3.1° |
| IR Range | Up to 150m (492 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | |
| Main Stream | 2MP(1920*1080),Max 60fps |
| Sub Stream | 2MP (1920*1080), Max 60fps |
| Third Stream | D1 (720*576), Max 60fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | undefined |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 200°/s |
| Preset speed | 300°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1° ~ 200°/s |
| Preset speed: 240°/s | undefined |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC |
| EMC | FCC Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3-2013 |
| Safety | IEC 62368-1, EN 62368-1, UL 60950-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) |
| Power consumption | Max 41W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) |
| Weight | 5.39kg(11.88lb) |
| Working Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
| Surge protection | 6KV |
| Reset Button | Support |
| Protection | Ingress Protection: IP66 |
