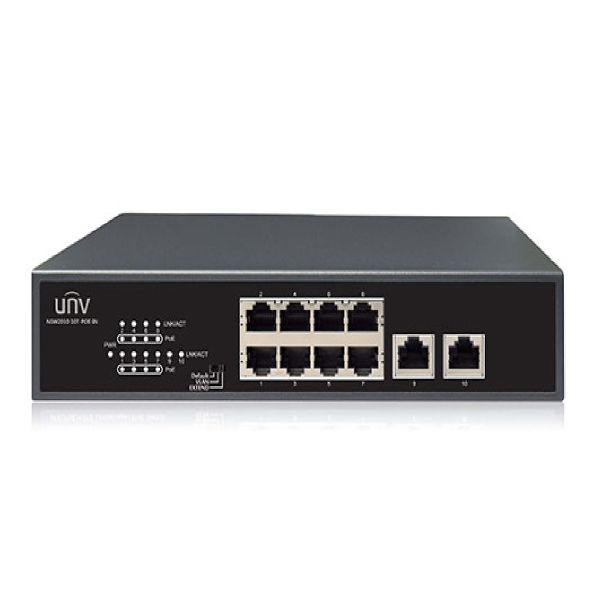

UNV 8PoE+2Port Switch
OMR 25.330
Price inclusive of VAT
- Multiple working modes to address your business needs: Normal, Secure, and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Availability: In stock
SKU
NSW2010-10T-POE-IN
| Ports | 10×100Mbps network ports (RJ45),including 8 PoE ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x, IEEE802.3af,IEEE802.3at |
| Switching capacity | 2Gbps |
| Forwarding performance | 1.49Mpps |
| Packet Buffer | 1.625Mbit |
| MAC | 4K |
| Dimensions (W×D×H) | 220mm x 150mm x 44mm(8.7"×5.9"×1.7") |
| Weight | <1.22kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power Max capacity | 120W |
| Max capacity for single port | 30W |
| Cooling Fans | 0 |
| Mean Time Between Failure(MTBF) | >50000 hours |
| Ambient temperature | 0°C-45°C (32°F-113°F) |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR |
| Steady On | AC input is normal |
| Off | No AC input |
| PoE Off | No PoE power supply |
| Steady on | PoE power supply is normal |
| LINK/ACT Off | No link |
| Steady | Linked at 10/100Mbps |
| Flashing | Transmitting data |
| Speed | |
| Off | Linked at 10/100Mbps |
| On | Linked at 1000Mbps |
| Working Mode Default(Normal mode) | Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
