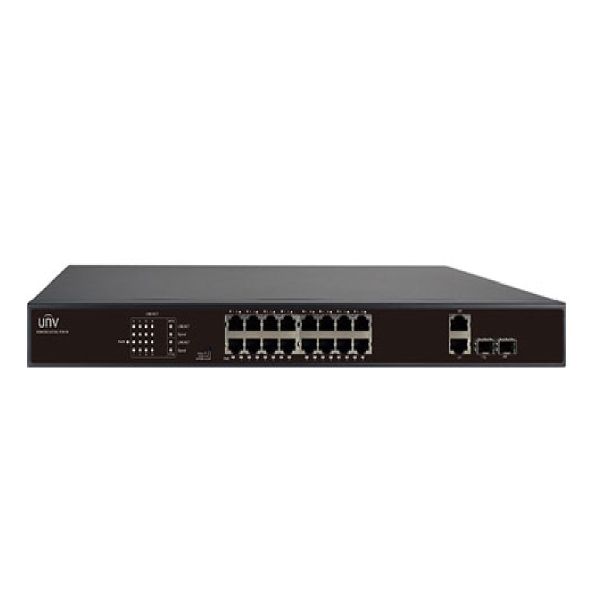

UNV 16-port, 2 Uplink port PoE Switch
OMR 91.330
Price inclusive of VAT
- Multiple working modes to address your business needs: Normal, Secure, and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Availability: In stock
SKU
NSW2010-16T2GC-POE-IN
| Ports | 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports,RJ45 port, full duplex, MDI/MDI-X adaptive |
| Ports for long-distance transmission | Ports 1 to 16 |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az |
| Switching capacity | 7.2Gbps |
| Forwarding performance | 5.36Mpps |
| Forwarding mode | Store-and-forward switching |
| Packet Buffer | 4Mbit |
| MAC | 16K |
| Dimensions (W×D×H) | 440mm x 207mm x 45mm(17.3"×8.1"×1.8") |
| Weight | <4.2kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power Max capacity | 250W |
| Max capacity for single port | 30W |
| Switch Power | 270W |
| Surge Protection | Common mode ±6KV Differential mode ±4KV |
| Electrostatic standard | Common mode ±6KV Differential mode ±8KV |
| Cooling Fans | 2 |
| Mean Time Between Failure(MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR |
| Steady On | AC input is normal |
| Off | No AC input |
| PoE Off | No PoE power supply |
| Steady on | PoE power supply is normal |
| Flashing | PoE power supply is abnormal |
| LINK/ACT Off | No link |
| Steady | Linked at 10/100Mbps |
| Flashing | Transmitting data |
| Speed | |
| Off | Linked at 10/100Mbps |
| On | Linked at 1000Mbps |
| Working Mode Default(Normal mode) | All ports can communicate with each other. |
| VLAN(Secure mode) | Downlink ports can communicate only with uplink ports. |
| EXTEND(Surveillance mode) | Transmission distance up to 250 meters ,also downlink ports can communicate only with uplink ports. |
| Certifications | CE: CE-LVD (EN 62368-1:2014/A11:2017）; CE-EMC (EN 55032: 2015;EN 55035:2017; EN 61000-3-2:2014;EN 61000-3-3:2013+A1:2019); CE-RoHS (2011/65/EU;(EU)2015/863 ); UL: UL (UL 62368-1) FCC: FCC (47 CFR Part 15, Subpart B); KC:KC (KN 32: 2015, KN 35: 2015) |
