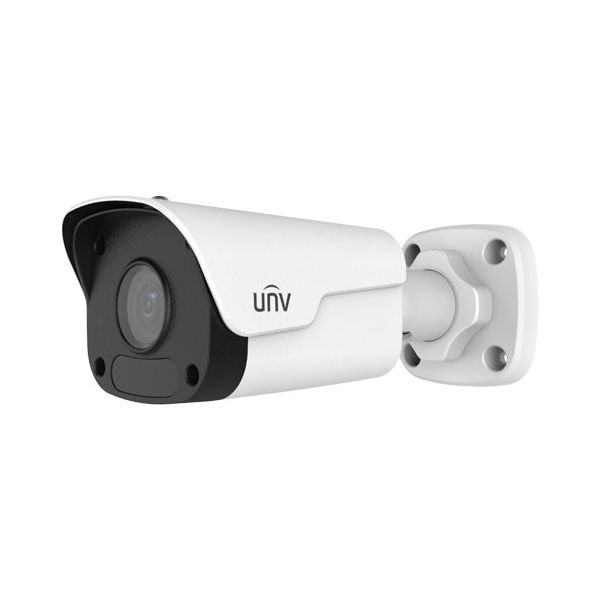

UNV IPC MiniFixed Bullet Network Camera

OMR 14.670

Price inclusive of VAT

Availability: In stock

SKU

IPC 2122LR3-PF40M-D

Sensor	1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0
Angle of View (H)	86.5°
Angle of View (V)	44.1°
Angle of View (O)	106.4°
Adjustment angle	Pan: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.02Lux (F2.0, AGC ON)
Digital noise reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
IR Range	Up to 30m (98ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	DWDR
Material	Metal
Net Weight	0.45kg (0.99lb)
Dimensions (L × W × H)	167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”)
UL	UL60950-1
FCC	FCC Part 15
Certifications	CE: EN 60950-1
Network	10/100M Base-TX Ethernet
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power consumption	Max 4.5W
Reset Button	Supported
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream: 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;	undefined
Third Stream: CIF (352*288), Max 30fps	undefined
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Image	undefined
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	Supported
HLC	Supported
BLC	Supported
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration	ONVIF (Profile S, Profile T), API
Client	EZStation, EZView, EZLive
Plug-in free live view	Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	2KV
Ingress Protection	IP67
