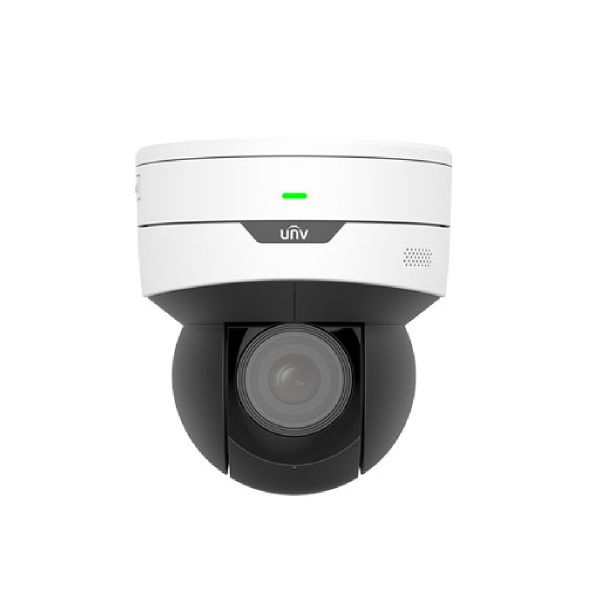

5MP WDR Starlight IR Network Indoor Mini PTZ Dome
OMR 86.670
Price inclusive of VAT
- High quality image with 5MP,1/2.7’’ CMOS sensor
- 2880*1620@30fps in the main stream, 16:9 aspect ratio
- Ultra 265, H.265, H.264, MJPEG
- 5X optical zoom allows for closer viewing of subjects
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Wi-Fi connection and easy installation
- Built-in Mic & Speaker, support two-way audio
- Alarm 1 in and 1 out
- Smart IR, up to 30m (98 ft) IR distance
Availability: In stock
SKU
IPC6415SR-X5UPW-VG
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour:0.003 lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | ＞56dB |
| Lens type | [email protected], AF automatic focusing and motorized zoom lens |
| Iris | Auto aperture |
| Angle of View (H) | 106.9°~30.6° |
| Angle of View (V) | 56.0°~17.7° |
| Angle of View (O) | 131.5°~39.8° |
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5MP (2880*1620),Max 30fps; |
| Sub Stream | 720P (1280*720), Max 30fps; |
| Third Stream | D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Support |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZLive, EZView |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Pan Range | 350° |
| Pan Speed | 0.1°/s ~ 60°/s |
| Preset speed | 60°/s |
| Tilt Range | 0° ~ 90° |
| Tilt Speed | 0.1° ~ 50°/s |
| Preset speed | 50°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120s~1800s |
| Preset Image Freeze | N/A |
| Alarm I/O | 1/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support (IEEE802.11b/g/n) |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video output | N/A |
| EMC | FCC Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3-2013 |
| Safety | IEC 62368-1, EN 62368-1, UL 60950-1 |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
| Power | DC12V(±25%), PoE+(IEEE 802.3at) |
| Power consumption: Max 15W | undefined |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ129 x 143.6mm (Φ5.1’’ x 5.7’’) |
| Weight | 0.76kg(1.67lb) |
| Working Environment | -10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
| Surge protection | 4KV |
| Reset Button | Support |
