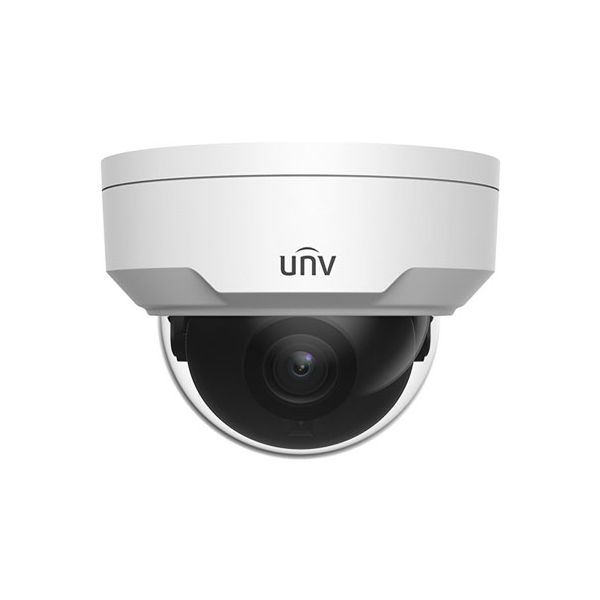

UNV 4MP HD Vandal-resistant IR Fixed DomeFixed lens 2.8mm
OMR 24.670
Price inclusive of VAT
Availability: In stock
SKU
IPC 324LE-DSF28K-G
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360° |
| S/N | >56dB |
| WDR | 120dB |
| Lens Type | 2.8mm and 4.0mm @1.6, Fixed-focal |
| Lens Mount | M12 |
| Angle of view (H) | 101.1° |
| Angle of View (V) | 55.3° |
| Angle of View (O) | 111.1° |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; |
| Sub Stream | 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, EZView, EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1, |
| UL | UL60950-1 |
| IEC | 60950-1 |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max5.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight | 0.35kg (0.77lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
| Ingress Protection | Ingression protection: IP67 |
| Vandal resistant | IK10 |
