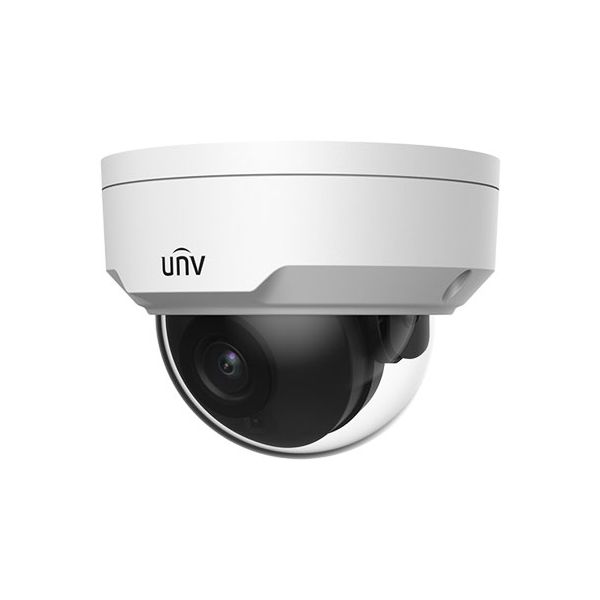

UNV 4K Vandal-resistant Network IR Fixed Dome Camera
OMR 44.000
Price inclusive of VAT
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction) Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Availability: In stock
SKU
IPC328LR3-DVSPF28-F
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS |
| Lens | [email protected] |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.05 Lux (F2.0, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >56dB |
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline Profile, Main Profile |
| Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps |
| Sub Stream | 720P (1280*720): Max. 20 fps |
| Third Stream | 4CIF (704*576): Max. 20 fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Client | EZStation, EZView, EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view | Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Network | 10/100M Base-TX Ethernet |
| Certifications | CE: EN 60950-1 |
| UL | UL60950-1 |
| FCC | FCC Part 15 |
| Power | DC12V±25%, PoE (IEEE802.3 af) |
| Power consumption | Max 5.5w |
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) |
| Net Weight | 0.45kg (0.99lb) |
| Material | Metal + Plastic |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing) |
| Strorage Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity: ≤95% RH(non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Dewarping | NA |
